1000VDC 20A 8×31.5mm Solaris lux PV Fuse Link
YRPV-20 1000VDC Solarium PV Fuse Link machinatum est ut obviam emergenti regio tutelae 1000VDC photovoltaicae (PV) rationi necessariae occurreret. Hic stylus cylindricus fuse nexus cum 8×31.5mm magnitudine normatis 1000VDC systemata photovoltaica (PV) efficaciter tueri potest. 1000VDC 20A 8×31.5mm Lumen solaris PV Fuse Link plures amperes aestimationes praebet ab 2A ad 20A, quod proprie applicatur ad ambitum photographicum Solaris (PV) viae lucis (lucernae). Sicut Chinese Solaris Photovoltaicus (PV) fabrica Fuse, Zhejiang Galaxy Fuse Co, Ltd.
Mitte Inquisitionem
depictio producti

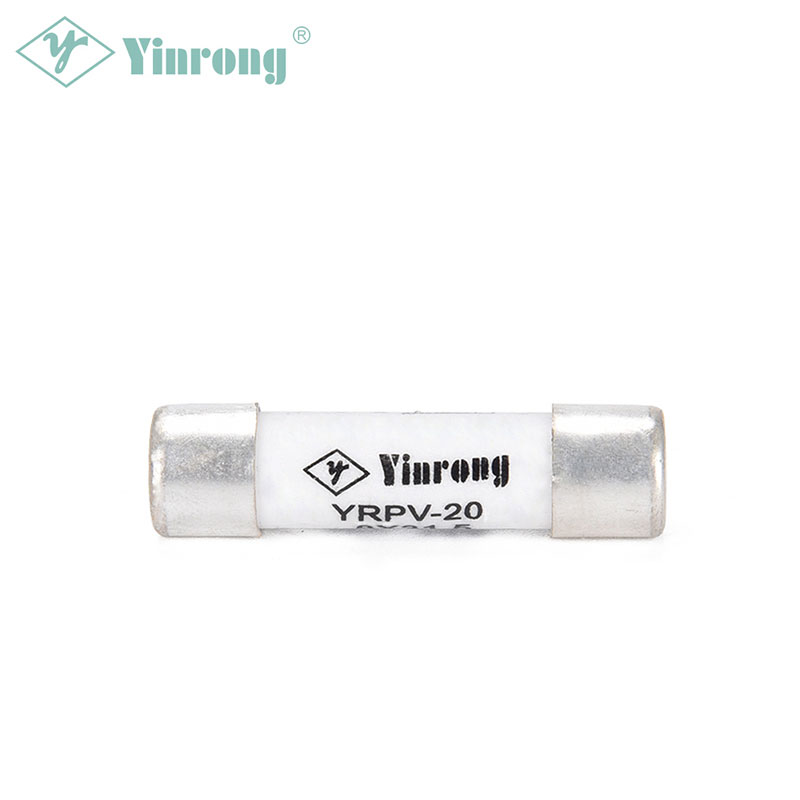

1000VDC 20A 8×31.5mm Solaris lux PV Fuse Link
Approbationes & signa
• IEC60269-6• GB/T13539.6
Genus Operationis
• gPVFeatures & Beneficia
• 1000VDC Photovoltaic (PV) systema praesto• 2-20A arripere ratings available
• Meets IEC60269-6 vexillum pro global acceptatione
• Midget magnitudine pro spatii-salutaris
Dura cylindrica constructione •
• Minimum temperatus ortum melius electrica performance
DIN Rail Mountable
• 10kA capacitatem praevaricationis ab TUV, CE approbatam
Applications

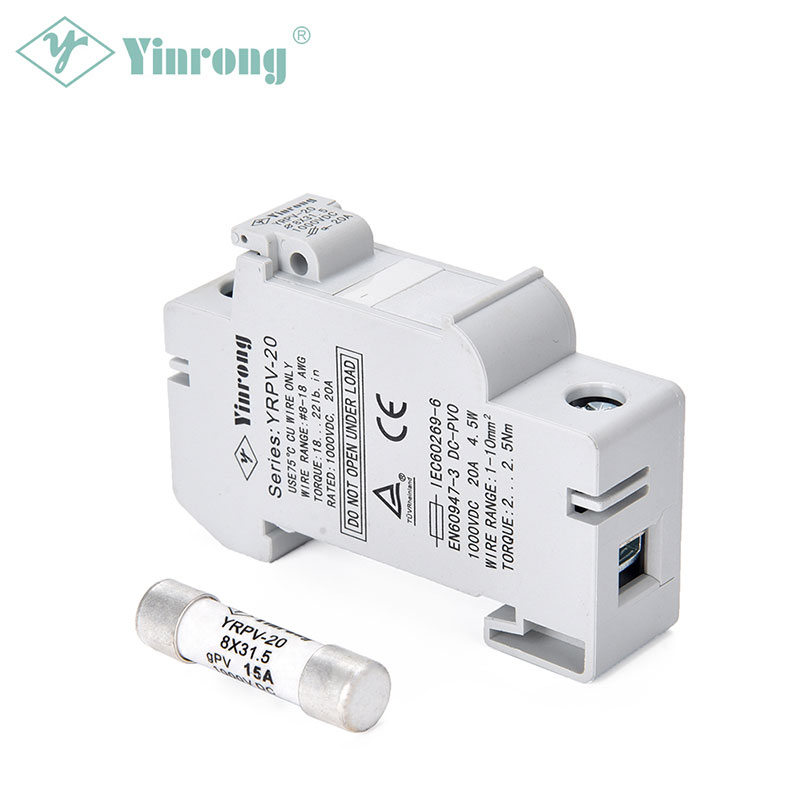

• Solaris Photovoltaic (P.) Street Lux (Lamp)Commendatur Fuse Holder
• YRPV-20 1000VDC Fuse HolderRegia originis
• Populi Reipublicae Sinensis
Morbi laoreet
| Product Code | Ratum current | facultatem fractionis | salus certificatorium | Virtus damnum 1.0In(W) |
Net pondus | ||
|---|---|---|---|---|---|---|---|
 |
 |
 |
|||||
| YRPV20/02NF | 2A | 1000Vdc TUV&CE:10kA |
● | ● | ○ | 1.85 | 4.8g |
| YRPV20/03NF | 3A | ● | ● | ○ | 2.2 | ||
| YRPV20/05NF | 5A | ● | ● | ○ | 2.7 | ||
| YRPV20/06NF | 6A | ● | ● | ○ | 2.9 | ||
| YRPV20/08NF | 8A | ● | ● | ○ | 1.4 | ||
| YRPV20/10NF | 10A | ● | ● | ○ | 1.6 | ||
| YRPV20/12NF | 12A | ● | ● | ○ | 1.8 | ||
| YRPV20/15NF | 15A | ● | ● | ○ | 2.0 | ||
| YRPV20/20NF | 20A | ● | ● | ○ | 2.3 | ||
Nota:●CERTIFICATIO EST AD APPROBATURA;○Pro PENDING CERTIFICATION
Magnitudo (mm)
Exemplar Explicatio
â‘ €¦â€¦Galaxy fuse code……YR
‡……“Photovoltaic†……PV
③……Maximum æstimatum fuse……40A
④……Rated current of fuse link……E.g:15A
Tempus-current Proprium
| Standard: IEC60269-6 & GB/T 13539.6 | |
| 113% In | 145% In |
| > 1h non reducuntur | <1h fusing |
Tempus-current curva
Reservamus ius technicis mutationibus
