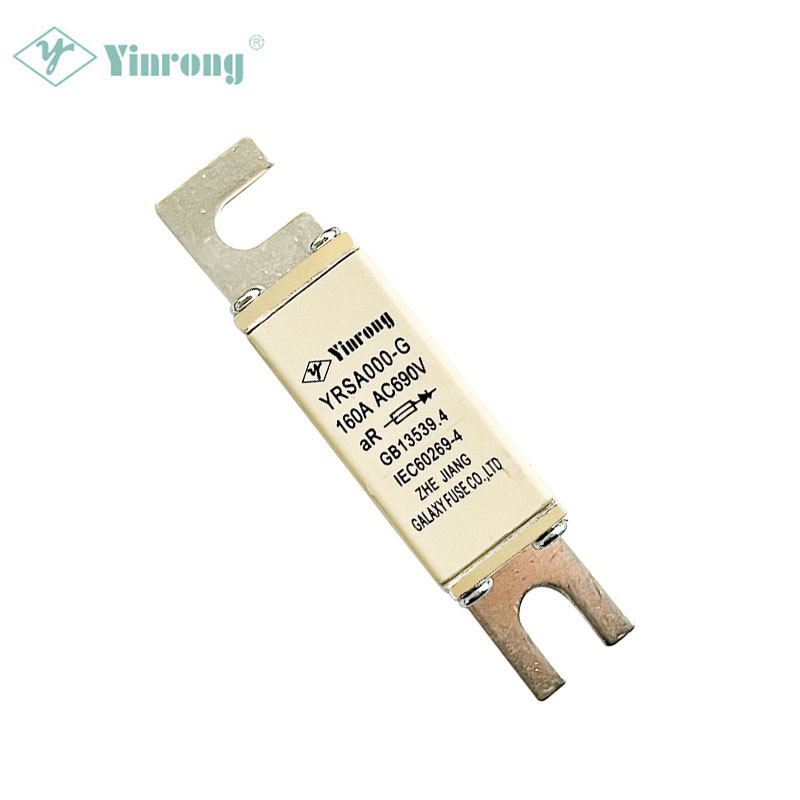

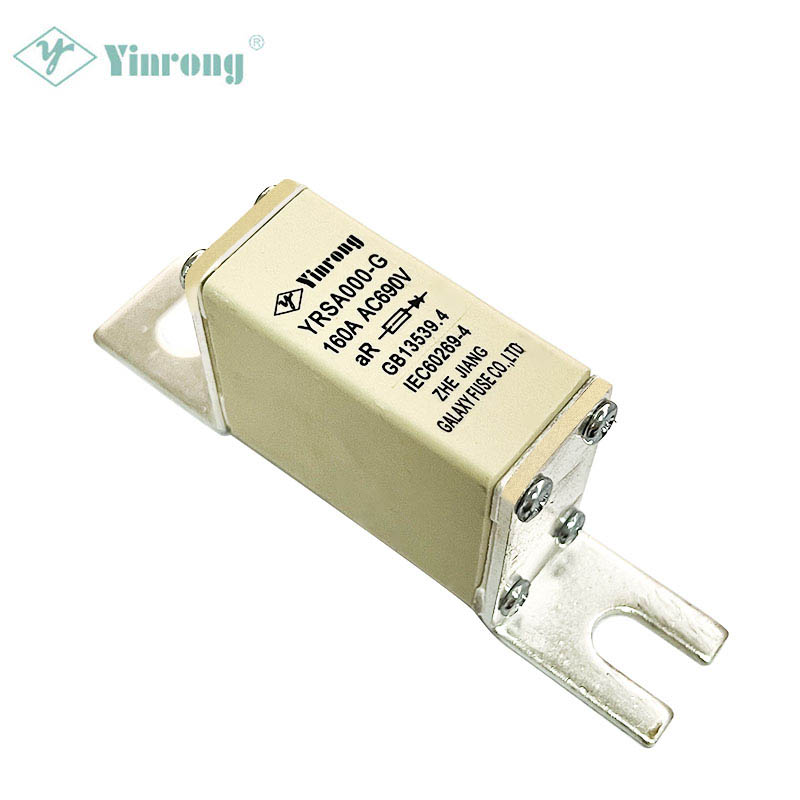

690V 315A YRSA000-G EXILIM Fuse
Sina alta celeritate fuse elit galaxia Fuse (Yinrong)s YRSA000-G alta celeritate fuse specialiter destinatur ad machinas semiconductores tuendas. Fuse summa celeritate YRSA000-G ad breve spatium solum praesidium destinatur. Fuse summa celeritate YRSA000-G late amperage rating offert 10-315A sub intentione aestimatae 690V/700VAC, quae maxime semiconductoris praesidio occurrere potest. Haec YRSA000-G summa celeritate fuse accommodata est ad vexillum nationi GB13539.4 et vexillum electricum internationale IEC60269-4. Praepotens Rï¼D capacitatis, Galaxy Fuse (Yinrong) varias etiam magnas celeritates praebet ad applicationes energiae repositae obviam emergentes.
Mitte Inquisitionem
depictio producti
Approbationes
⢠GB/T13539.4⢠IEC60269-4
Genus Operationis
⢠aRFeatures
⢠690V/700VAC systema electrica available⢠10-315A ampere ratings available
Maximum interpellans rating
Quadratum corpus DIN (CDXXXVI)LIII obseratis tags conscendens
Visual indicator available
¢ Conforms to IEC signa for global acceptatio
Minimum potentia damnum et temperatus ortum ad industriam efficientiam
Applications
â Power converters / rectifiersAC/DC systems commune
⢠Frequency converters
Reducitur rated voltage imprimis
¢ Pugna industria systemata repono
â ¢ Regenerative agit
Alii semiconductores
Patria originis
Reipublicae Populi Sinarum
Morbi laoreet
| P/N | Magnitudo | Current (A) | I²t (A²s) 690V/700VAC | Potentia Loss (W) |
Adscendens | |
|---|---|---|---|---|---|---|
| Pre-arcing | Liquefacit | |||||
| YRSA000-G-690V/10A | 000 | 10 | 4 | 26 | 3 | fulmen M8 Torque 10N.m |
| YRSA000-G-690V/16A | 16 | 7 | 47 | 5.5 | ||
| YRSA000-G-690V/20A | 20 | 11 | 77 | 7 | ||
| YRSA000-G-690V/25A | 25 | 19 | 129 | 9 | ||
| YRSA000-G-690V/32A | 32 | 40 | 270 | 10 | ||
| YRSA000-G-690V/40A | 40 | 68 | 455 | 12 | ||
| YRSA000-G-690V/50A | 50 | 116 | 772 | 15 | ||
| YRSA000-G-690V/63A | 63 | 214 | 1430 | 16 | ||
| YRSA000-G-690V/80A | 80 | 385 | 2560 | 19 | ||
| YRSA000-G-690V/100A | 100 | 690 | 4650 | 24 | ||
| YRSA000-G-690V/125A | 125 | 1190 | 8500 | 28 | ||
| YRSA000-G-690V/160A | 160 | 2200 | 15800 | 32 | ||
| YRSA000-G-690V/200A | 200 | 4180 | 27800 | 38 | ||
| YRSA000-G-690V/250A | 250 | 7650 | 51300 | 42 | ||
| YRSA000-G-690V/315A | 315 | 11900 | 80300 | 50 | ||
Magnitudo (mm)
Tempus Current Proprium Curve
