1500VDC 30A 10×85mm Solarium PV Fuse Link
  • 1500VDC 30A 10×85mm Solarium PV Fuse Link1500VDC 30A 10×85mm Solarium PV Fuse Link
  • 1500VDC 30A 10×85mm Solarium PV Fuse Link1500VDC 30A 10×85mm Solarium PV Fuse Link
  • 1500VDC 30A 10×85mm Solarium PV Fuse Link1500VDC 30A 10×85mm Solarium PV Fuse Link
  • 1500VDC 30A 10×85mm Solarium PV Fuse Link1500VDC 30A 10×85mm Solarium PV Fuse Link

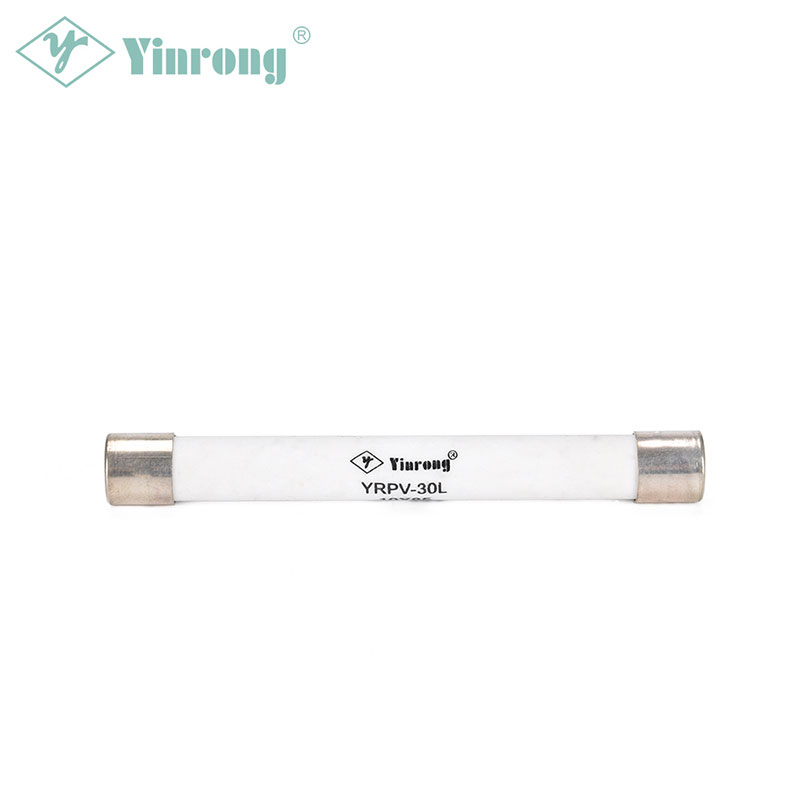

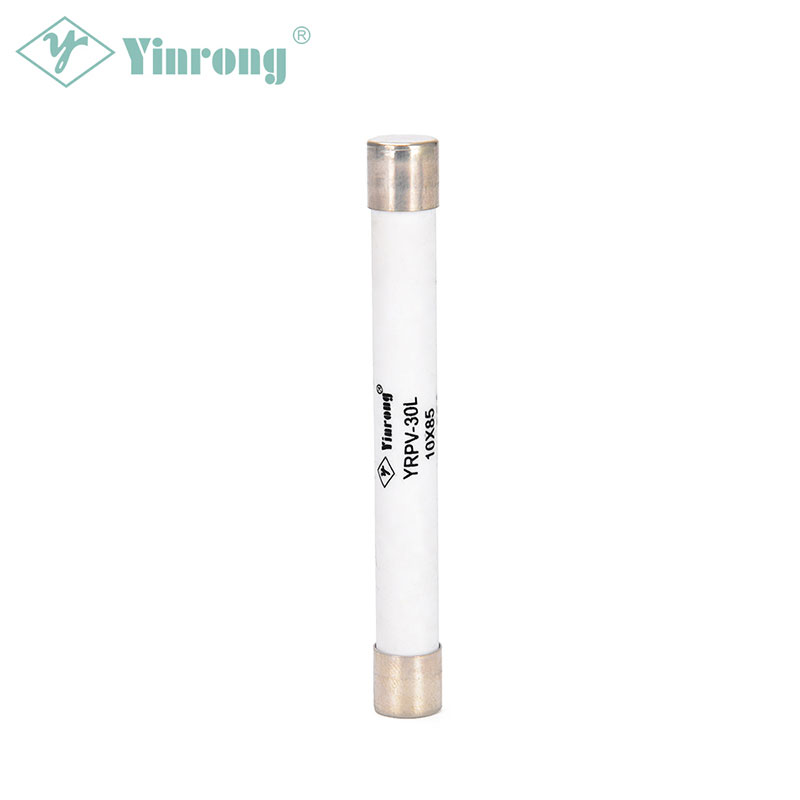

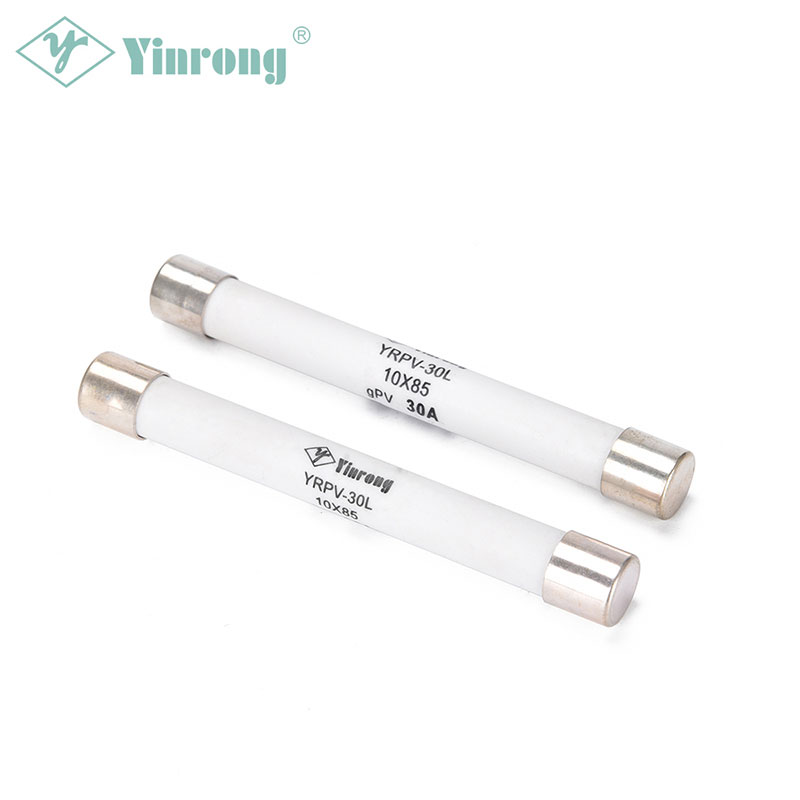

1500VDC 30A 10×85mm Solarium PV Fuse Link

YRPV-30L 1500VDC Solaris PV Fuse Link ordinatur ad systemata PV tutanda. Haec 10×85mm amplitudo plenae fusae cylindricae 15DVDC systemata Photovoltaica tuto tutatur. In 1500VDC 30A 10×85mm Solaris PV Fuse Link aestimatur 2A ad 30A et requisitis occurrit applicationibus photovoltaici (PV) applicationes ut PV chorda, PV ordinata protectione, applicationes capsulae coniungentis etc. Zhejiang Galaxy Fuse Co Ltd. est Sinica vis ducens in Photovoltaico Solario (PV) Fuse. Societas innovationem technologicam intendit ad necessitates emergentium mercatus emergentium.

Mitte Inquisitionem

depictio producti

1500VDC 30A 10×85mm Solarium PV Fuse Link

Approbationes & signa

• IEC60269-6
• UL248-19

Genus Operationis

• gPV

Features & Beneficia

• 1500VDC Photovoltaic (PV) systema praesto
• 2-30A arripere ratings available
• Meets IEC et UL signa photovoltaica ad global acceptationem
• Constructione pacto cylindrico
• Maximum potentiae luxuriae ratio pro industria salutaris
DIN Rail Mountable
• 40kA capacitatem praevaricationis ab TUV, CE approbatam
• 20kA approbata ab UL . facultatem fractionis

Applications

• Combiner box
â€
• Inverters
• altilium crimen moderatoris
• in linea P. moduli tutelam

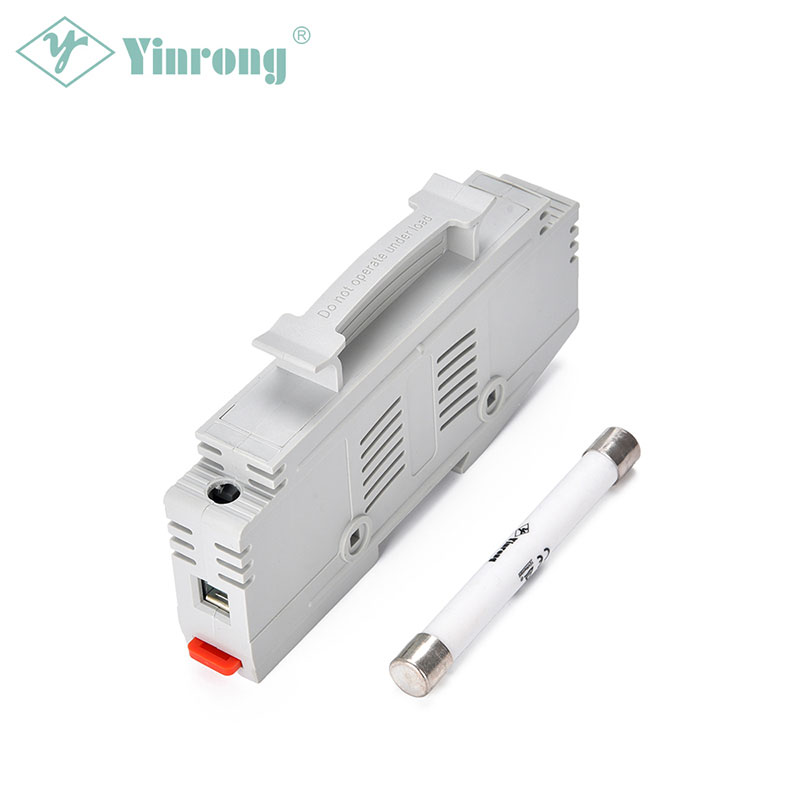

Commendatur Fuse Holder

• YRPV-30L 1500VDC Fuse Holder

Regia originis

• Populi Reipublicae Sinensis

Morbi laoreet

Product Code Ratum current facultatem fractionis salus certificatorium Virtus damnum
1.0In(W)		 Net pondus



YRPV30L/02NF 2A 1500Vdc
TUV&CE:40kA
UL:20kA
 ● ● ● 2.2 19g
YRPV30L/03NF 3A ● ● ● 2.3
YRPV30L/04NF 4A ● ● ● 2.5
YRPV30L/05NF 5A ● ● ● 2.6
YRPV30L/06NF 6A ● ● ● 2.8
YRPV30L/08NF 8A ● ● ● 3.1
YRPV30L/10NF 10A ● ● ● 3.4
YRPV30L/12NF 12A ● ● ● 3.7
YRPV30L/15NF 15A ● ● ● 4.0
YRPV30L/20NF 20A ● ● ● 4.6
YRPV30L/25NF 25A ● ● ● 5.6
YRPV30L/30NF 30A ● ● ● 6.5

Nota:●CERTIFICATIO EST AD APPROBATURA;○Pro PENDING CERTIFICATION

Magnitudo (mm)

Exemplar Explicatio


⑑ ……Galaxy fuse code……YR

‡……“Photovoltaic†……PV

③……Maximum æstimatum fuse……30A

④……Size code……"L"-85mm Long size

⑤ ……Rated current of fuse link……E.g:15A

Tempus-current Proprium

Standard: UL248-19 Standard: IEC60269-6
135% In 200% In 113% In 145% In
<1h fusing <240s adunatati > 1h non reducuntur <1h fusing

Tempus-current curva

Reservamus ius technicis mutationibus
