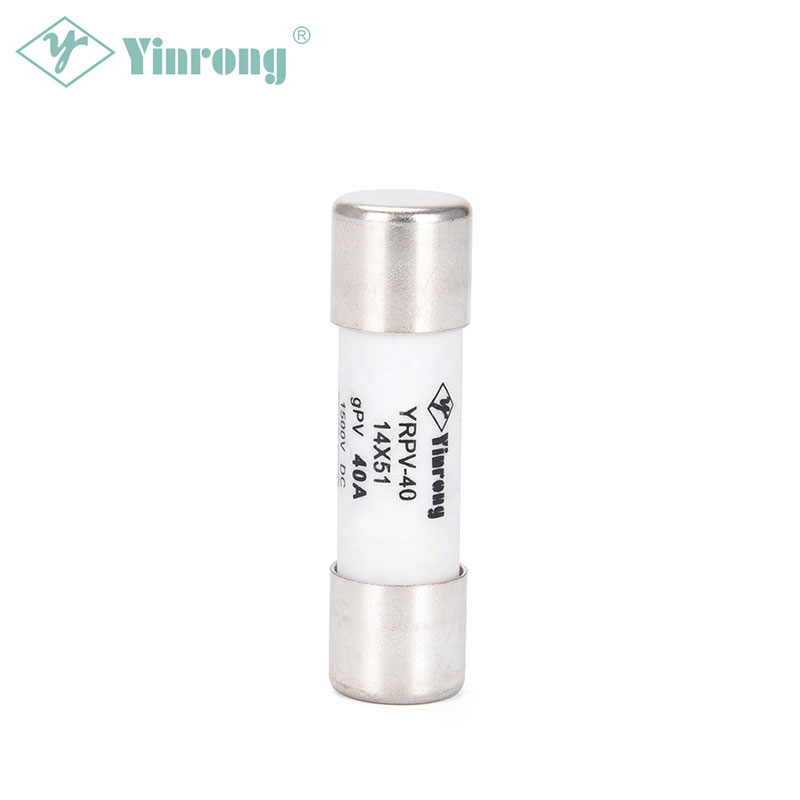

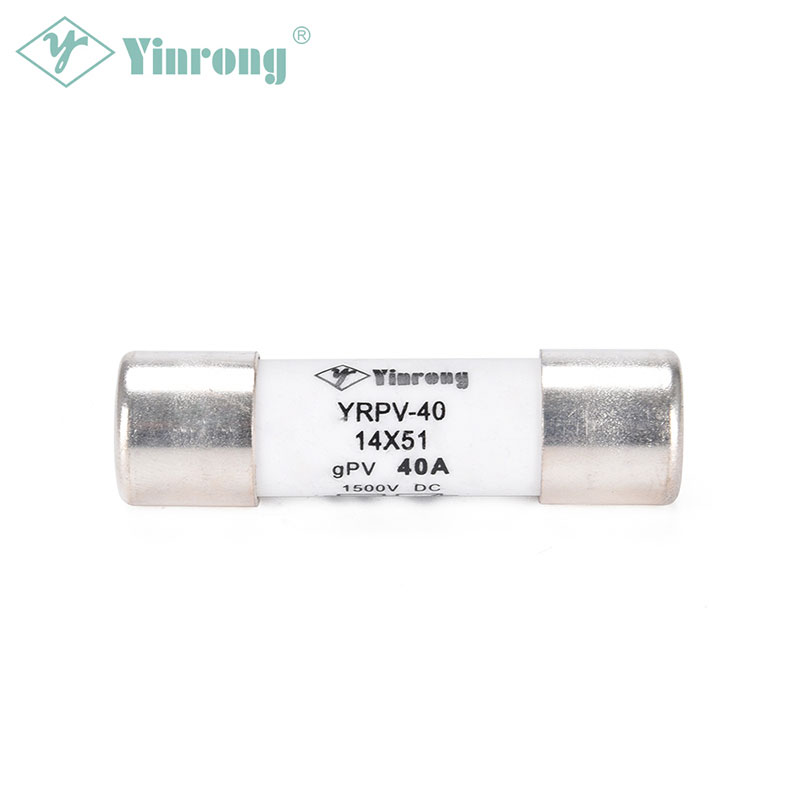

1500VDC 40A 14×51mm Solar PV Thermal Fuse Link

YRPV-40

YRPV-40 1500VDC Solarium PV Fuse Link peculiariter designatum est ad systema Solarem photovoltaicum tuendum ac segregandum. Hoc 14×51mm compactum cylindricum fuse 1500VDC systemata photovoltaica (PV) munit. 1500VDC 40A 14×51mm Solarium PV Thermal Fuse Link plures ampere ratings 10A ad 40A praebet et potest interrumpere onera oneris cum systematibus photovoltaicis (PV) consociatis. Zhejiang Galaxy Fuse Co. Ltd. (Yinrong) est opifex primarius photovoltaici solaris (PV) Fusorum in Sinis, dedicatus ad tutiorem ambitum tutelam nostris clientibus praebendam.

Model:YRPV-40

Mitte Inquisitionem

depictio producti

1500VDC 40A 14×51mm Solar PV Thermal Fuse Link

Approbationes & signa

• IEC60269-6
• GB/T13539.6

Genus Operationis

• gPV

Features & Beneficia

• 1500VDC Photovoltaic (PV) systema in promptu
• 10-40A ampere ratings praesto
• Meets IEC60269-6 vexillum pro global acceptatione
• Foedus cylindricum constructionem
• Venti dissipatio et temperatus potentia oriuntur lineamenta longioris vitae cycli
• DIN Rail Mountable
• 25kA fractio capacitatis ab TUV, CE . approbata

Applications

• Inverters
• Combiner greges
• altilium crimen moderatoris

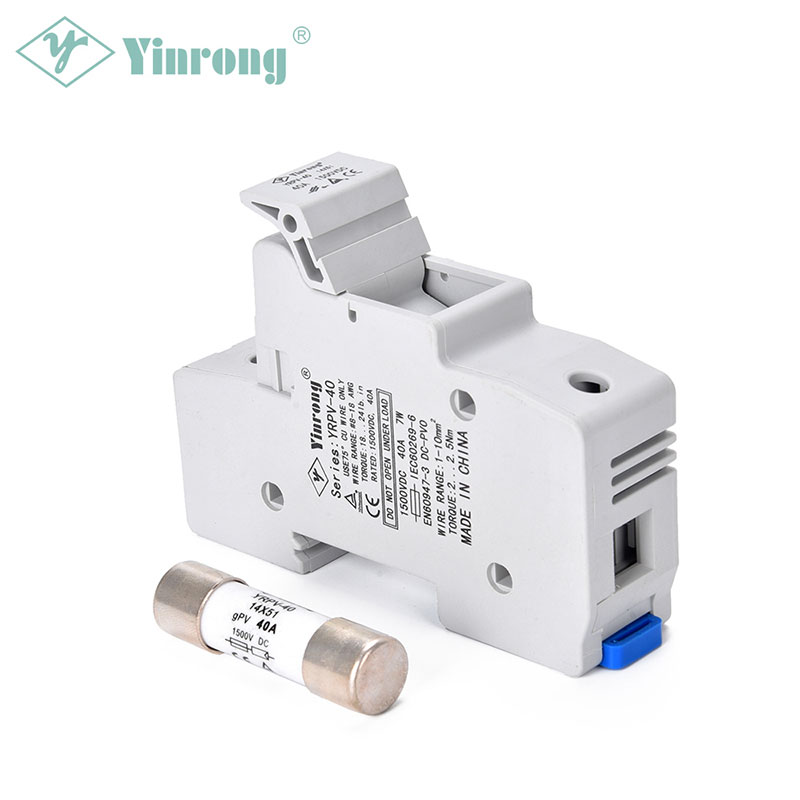

Commendatur Fuse Holder

• YRPV-XL 1500VDC Fuse Holder

Patria Origin

• Populi Reipublicae Sinarum

Morbi laoreet

Product Code	Ratum current	facultatem fractionis	salus certificatorium			Virtus damnum 1.0In(W)	Net pondus
Product Code	Ratum current	facultatem fractionis				Virtus damnum 1.0In(W)	Net pondus
YRPV40/10NF	10A	1500Vdc TUV&CE:25kA	●	●	○	1.7	24.5g
YRPV40/12NF	12A		●	●	○	2.0
YRPV40/15NF	15A		●	●	○	2.5
YRPV40/20NF	20A		●	●	○	3.0
YRPV40/25NF	25A		●	●	○	3.9
YRPV40/32NF	32A		●	●	○	5.0
YRPV40/40NF	40A		●	●	○	6.3

Nota:●CERTIFICATIO EST AD APPROBATURA;○Pro PENDING CERTIFICATION

Magnitudo (mm)

Exemplar Explicatio

① .. .YR

……“Photovoltaic”……PV

……Maximum rated current of fuse ........40A

④ Ratum current of fuse link ........E.g:15A

Tempus current Proprium

Standard: IEC60269-6 & GB/T 13539.6
113% In	145% In
> 1h non reducuntur	<1h fusing

Tempus-current curva

Reservamus ius mutationibus technicis faciendis
