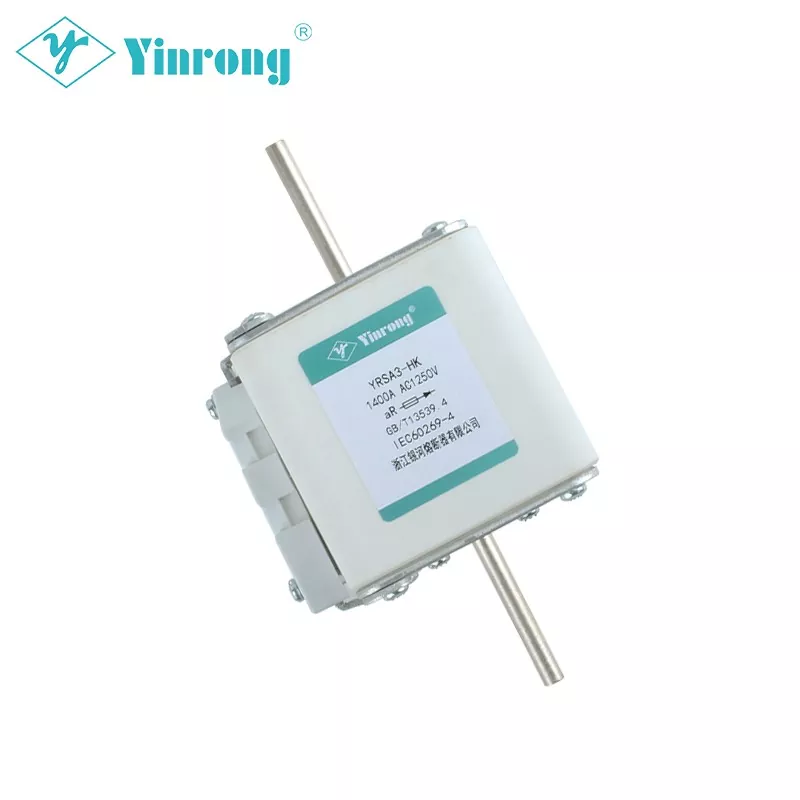

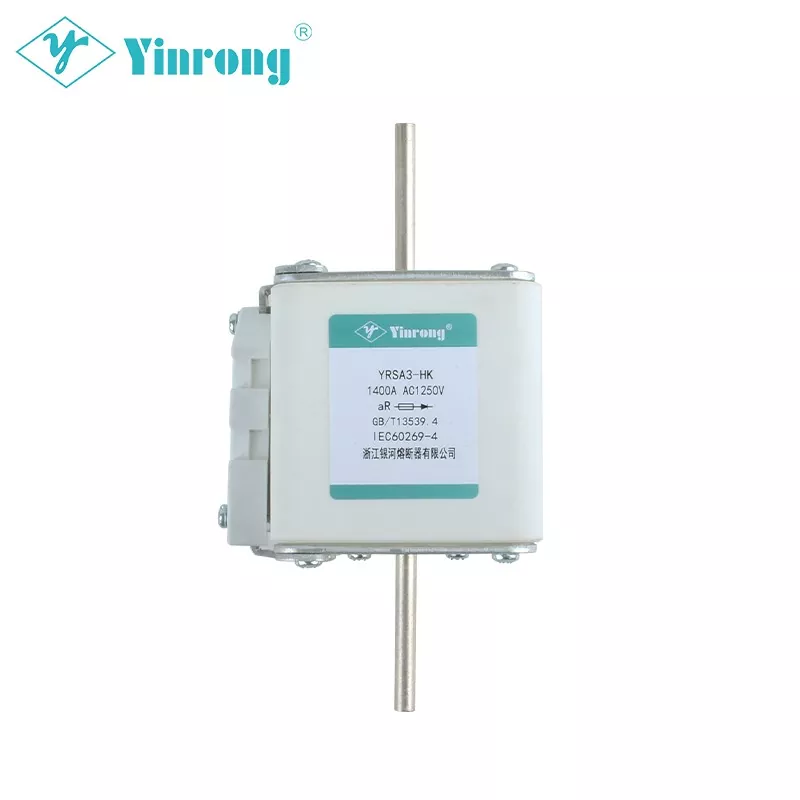

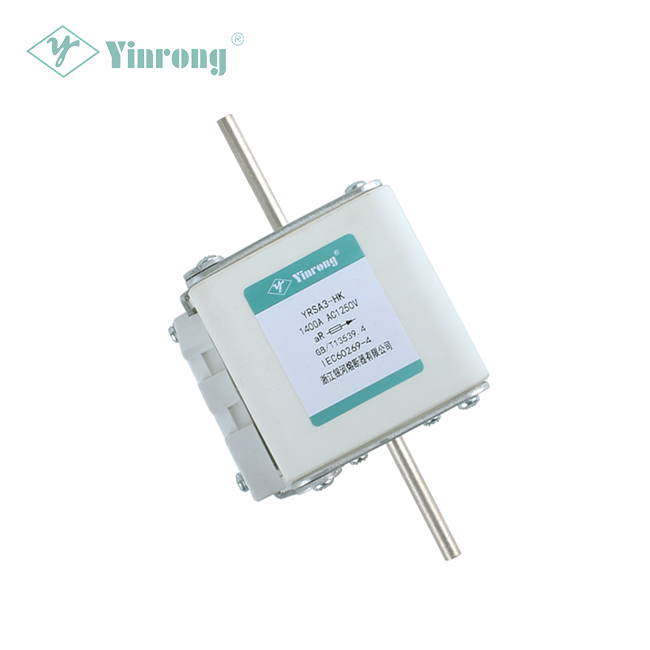

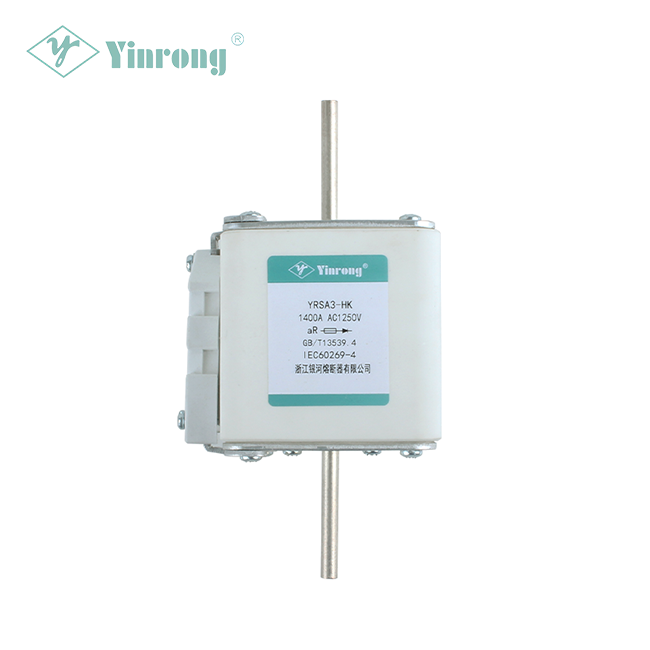

YRSA01/1/2/3-H(K) 1250V 40-2000A High Speed Fuse

Fuse galaxia primarius Sinarum est YRSA01/1/2/3-H(K) 1250V 40-2000A summus Speed Fuse artifices. Sinis altum celeritatem semiconductoris fuse elit Galaxy Fuse (Yinrong) scriptor YRSA(x)-HK Series gR fuses altae celeritatis peculiariter designatae sunt ad machinas semiconductores tuendas.

Mitte Inquisitionem

depictio producti

YRSA01/1/2/3-H(K) 1250V 40-2000A High-Speed Fuses are designed for both overload and short-circuit protection. YRSA(x)-HK Series gR high speed fuses provide a wide amperage rating of 40-2000A under the rated voltage of 1250V (IEC/UL), which can typically fit most semiconductor devices. This YRSA(x)-HK Series gR high speed fuse conforms to the national standard GB13539.4 and the international electrical committee standard IEC60269-4.Many square body fuses are equipped with a trip-indicator. This trip indicator can operate a field-mountable micro-switch which is easily mounted directly onto the fuse. Galaxy Fuse (Yinrong) also affords various high speed fuses to meet customers' requirements.

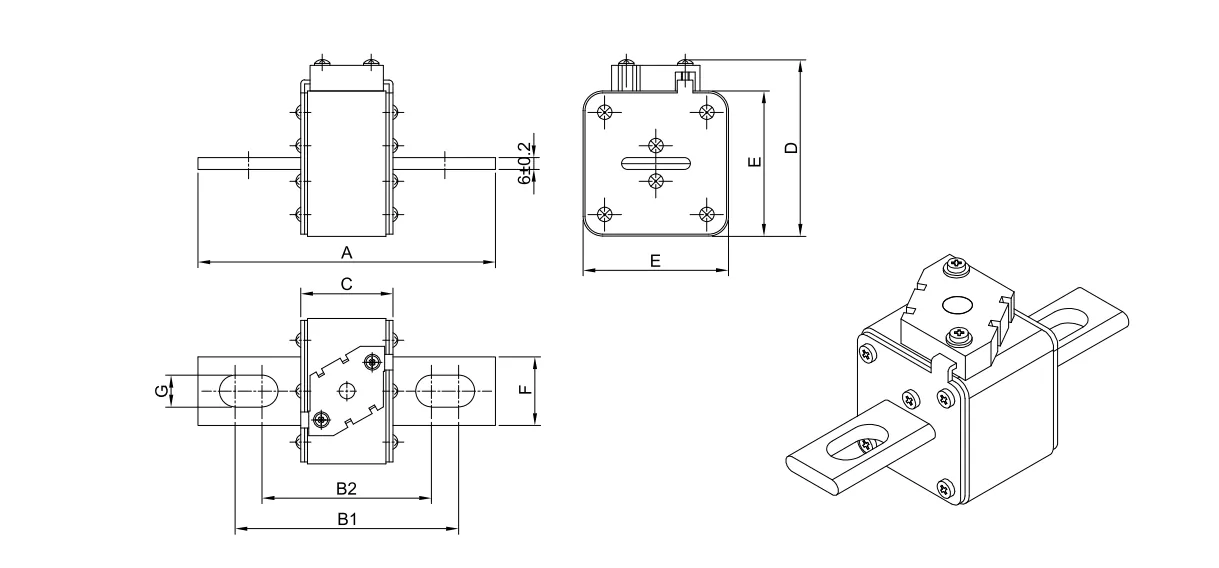

Magnitudo (mm)

P/N	A±2.5	A (115）±2.5	B1±2.5	B1（115）±2.5	B2±2.5	B2（115）±2.5	C±2.5	D±2.5	E±2	F±1	G±0.5

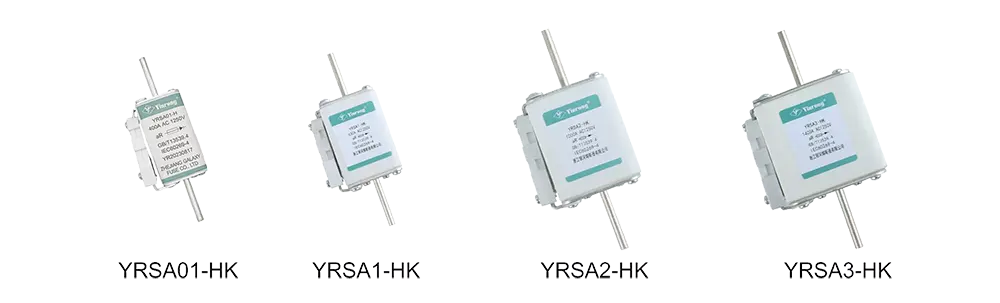

YRSA01-H	110	148	85	123	72	110	50	59	45	20	10
YRSA1-H	136	157	104	126	78	100	50	69	53	25	14
YRSA2-H	135	159	105	125	78	99	50	77	61	25	14
YRSA3-H	135	155	106	125	77	97	51	92	75	36	16

Approvals＆standards

·GB/T13539.4

·IEC60269-4

·UL248-13

Genus Operationis

·gR

·aR

Features＆Benefits

·1250VAC systematis eletricalis in promptu est

·40-2000A ratings available

· Summe altum interpellans rating

· Conformat IEC signa pro global acceptatione

· Superiores revolutio facultatem

· High current limitatio

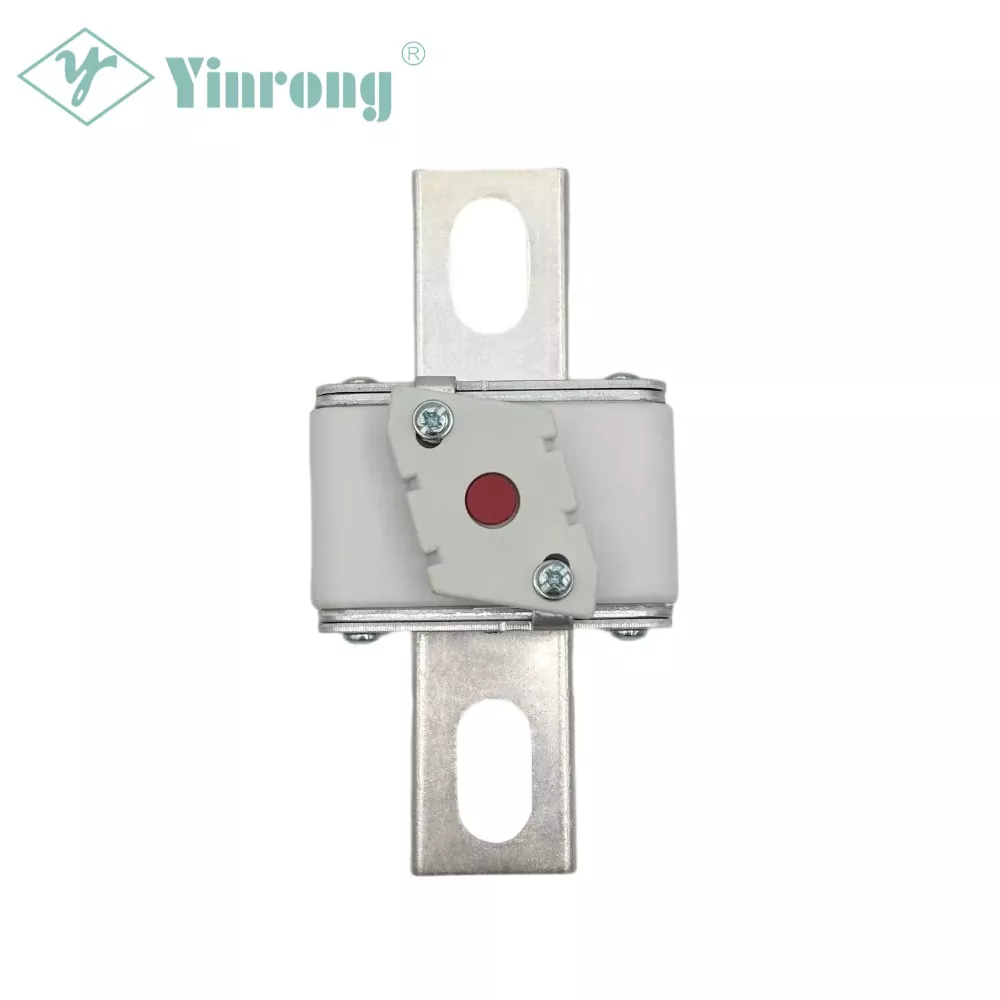

· Visual et libitum Micro swithae fuse inflatum indicationem

Applications

Virtus conversionem machinas (UOS, inverter, rectificatores, pellit)

DC systems（DC communi bus，DC iniectio braking.

· Pugna tutela application

Electric statio car · stultum

Fervens ac potestatem commeatus

Alii semiconductores

Patria Origin

·Populi Reipublicae Sinensis

Consuetudine Fusing et Non Fusing

Ratum Current (A）	Tempus conventionale h）	Conventional Current
		"gr"
		Inf	lf*
ln≤63	1	1.13ln	1.6ln
63＜In≤160	2
160＜ln≤400	3
400＜ln	4
Note：ln est fuse aestimatus; lnf conventional non-confluentes vena est; si est current conventional reducuntur.
